ISC QtQuick App

Small PySide6 + Qt Quick application scaffold for the ISenseCloud desktop UI shell.

Key App Features

The ISenseCloud application provides a real-time monitor and analysis dashboard for silicon wafer temperature profiles:

• Real-Time Data Streaming & Coalescing: Decodes binary frame streams from thermal sensors over serial/COM connections at ~20 Hz with low CPU overhead.
• RBF Heatmap Interpolation: A Radial Basis Function (RBF) interpolation engine paints a smooth 2D temperature gradient across the wafer surface based on physical sensor locations.
• Interactive Review & Playback: A FramePlayer component supports variable-speed playback (play, pause, step, seek) of recorded runs.
• Interactive Trend Charts: Renders multi-series temperature trends using a custom QtQuick painted item (GraphQuickItem) with automatic scaling, custom legends, and grid layouts.
• Tabular Data Inspection: Direct inspection of tabular dataset grids for frame-by-frame diagnostic checkups.
• Custom Safety Limits & Thresholds: Configurable alarm thresholds and set-points with automatic alerts when temperatures diverge from normal boundaries.

App Showcase

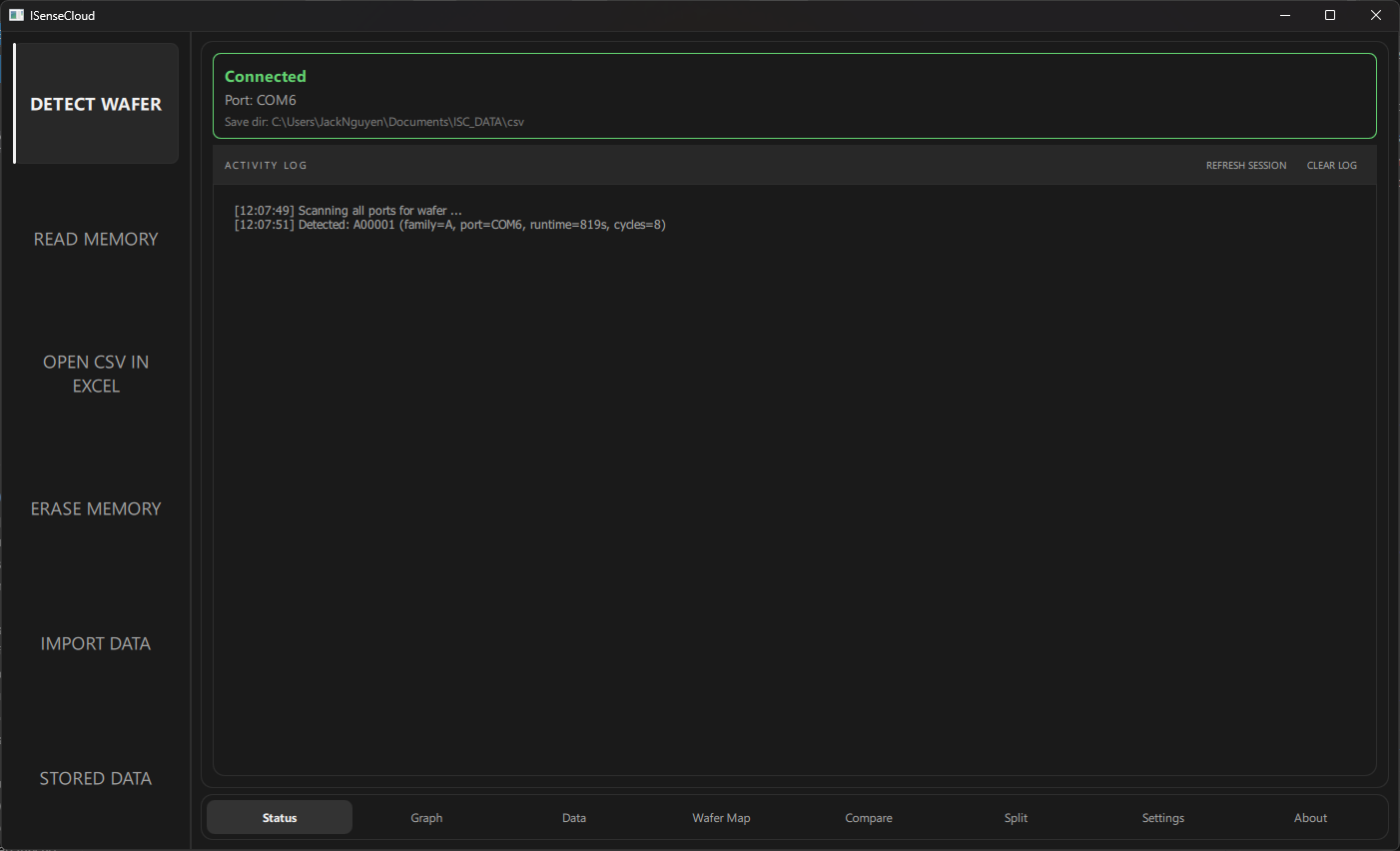

Figure 1: Main Status Dashboard displaying successful connection, active serial communications, and automated logging terminal.

Note

Take Screenshots for Visual Placeholders:

• Wafer Heatmap Tab: Take a screenshot of the Wafer Map tab showing the radial heatmap interpolation, save it to docs/design/wafer_heatmap_tab.png and add it here.
• Temperature Trend Graph: Take a screenshot of the Graph tab plotting multi-sensor trend lines, save it to docs/design/temp_trend_tab.png and add it here.

Key Architectural & Design Decisions

During the refactoring from the flat-layout prototype (SettingTab branch) to the unified package application (main), the following structural changes were made:

1. Package Layout Restructuring: Reorganized flat imports into a clean src/ layout under pygui.* sub-packages (controllers/, models/, data/, visualization/, wafer/) for better module isolation.
2. QML Component Decoupling: Monolithic pages were refactored into reusable component blocks (e.g., ReadoutPanel.qml, WaferMapView.qml, TransportBar.qml under src/pygui/ISC/Tabs/components/), easing tab maintenance.
3. Decoupled Controller Architecture: Introduced QML-bound controllers (DeviceController, SessionController) acting as bridges between UI triggers and backend model states (FramePlayer, SessionModel), keeping UI files strictly visual.
4. Robust Slot Error Boundaries: Decorated QML-callable slots with a custom @slot_error_boundary wrapper to intercept runtime errors gracefully without terminating the Qt environment.
5. Modernized Rendering Engine: Replaced outdated contour algorithms with Radial Basis Function (RBF) interpolation (rbf_heatmap.py) to render high-fidelity, real-time thermal profiles.

Requirements

• Python 3.11+ (tested with Python 3.14 in this workspace)
• macOS, Linux, or Windows with GUI support

Setup

From the project root:

Option A: Using uv (Recommended)

If you have uv installed:

uv sync

Option B: Using pip

python3 -m venv .venv
source .venv/bin/activate   # or .venv\Scripts\activate on Windows
python -m pip install --upgrade pip
pip install -r requirements.txt
pip install -e .            # install the `pygui` package (src/ layout) in editable mode

Run

Launch PySide6 QML App

make run

This launches the Qt window and loads the ISC QML module from src/pygui/ISC/Main.qml.

Development

The project uses uv for dependency management and tooling, Ruff for linting and formatting, Mypy for static type checking, and pytest for unit tests.

A Makefile is provided to simplify common development and verification tasks:

Command	Description
make install	Sync dependencies and set up the local .venv using uv
make run	Launch the ISenseCloud application
make test	Run the pytest test suite
make lint	Check code style and quality with the Ruff linter
make fix	Automatically fix fixable Ruff style violations
make typecheck	Run the Mypy static type checker
make clean	Clean build and tool caches (.pytest_cache, .ruff_cache, .mypy_cache, __pycache__)

Ruff Configuration

Ruff is configured in pyproject.toml to enforce:

• E/W: Pycodestyle errors and warnings
• F: Pyflakes linter rules
• I: Import sorting (isort parity)
• N: PEP 8 naming conventions

Project Structure

The application lives under a src/ layout as the pygui package:

• src/pygui/__main__.py: PySide6 bootstrap; creates the Qt app and loads QML module ISC/Main. Entry point for python -m pygui.
• src/pygui/backend/: Qt-facing models, controllers, and visualizers organized into subdirectories:
  • controllers/: QML-facing controllers (Session & Device controllers).
  • data/: local settings, file browser, and CSV recorder utilities.
  • models/: data models (Session, Thresholds, Frame Player, Frame representation).
  • visualization/: QML wafer map item integration.
  • wafer/: layout definitions, coordinate mappings, and files parser.
• src/pygui/serialcomm/: serial port transport, device service scanning, and protocol data-parser layer.
• src/pygui/ISC/: the ISC QML module (UI).
  • Main.qml: top-level window definition.
  • HomePage.qml: main UI layout (left action rail, workspace panel, footer tabs).
  • Theme.qml: shared theme constants and dark/light mode tokens.
  • qmldir: QML module registration.
• tests/: pytest suite.
• packaging/: PyInstaller spec (isc.spec) and app icons.

Architecture

┌────────────────────────────────────────────────────────────┐
│                      QML Layer (src/pygui/ISC/)            │
│  HomePage.qml  ─  WaferMapTab.qml  ─  DataTab.qml         │
│  StatusTab.qml  ─  SettingsTab.qml  ─  components/*        │
└─────────────────────────┬──────────────────────────────────┘
                          │  Q_PROPERTY / @Slot / Signal
┌─────────────────────────▼──────────────────────────────────┐
│                Controller Layer (backend/controllers/)      │
│  DeviceController  ─  SessionController                    │
│  (serial ops, status)  (streaming, playback)                │
└─────────────────────────┬──────────────────────────────────┘
                          │
┌─────────────────────────▼──────────────────────────────────┐
│                  Model Layer (backend/models/)              │
│  FramePlayer  ─  SessionModel  ─  ReplayStatsTracker       │
│  ThresholdClassifier  ─  SensorEditor  ─  ClusterAverage   │
│  TemperatureTableModel                                     │
└─────────────────────────┬──────────────────────────────────┘
                          │
┌─────────────────────────▼──────────────────────────────────┐
│              Serial / Data Layer (serialcomm/ + data/)      │
│  SerialPort ─ DeviceService ─ StreamReader ─ data_parser   │
│  LocalSettings ─ FileBrowser ─ CsvRecorder                 │
└─────────────────────────┬──────────────────────────────────┘
                          │
┌─────────────────────────▼──────────────────────────────────┐
│              Visualization (backend/visualization/)         │
│  WaferMapItem  ─  GraphView  ─  TrendChartItem             │
│  RBFHeatmap  ─  WaferMapView (QML wrapper)                 │
└────────────────────────────────────────────────────────────┘

Window Configuration

Window dimensions and constraints are defined in src/pygui/ISC/Main.qml:

• Default size: 1400 × 820 pixels
• Minimum size: 1100 × 700 pixels
• Title bar: "ISenseCloud"

To adjust the window, edit the Window block in src/pygui/ISC/Main.qml:

Window {
    width: 1400
    height: 820
    minimumWidth: 1100
    minimumHeight: 700
    visible: true
    title: qsTr("ISenseCloud")
}

Customization

• Toggle dark/light mode in src/pygui/ISC/Theme.qml via isDarkMode.
• Update sidebar and footer labels in src/pygui/ISC/HomePage.qml through sideActions and bottomTabs.

Troubleshooting

• If the app does not start, verify the virtual environment is active and dependencies are installed:

  Using uv:

  uv sync


  Using pip:

  source .venv/bin/activate   # or .venv\Scripts\activate on Windows
  pip install -r requirements.txt


• If no window appears, ensure you are running in a desktop session with GUI access.

• Windows COM Port Connection Issues:

  • Standard Windows serial drivers don't support custom baud rates (e.g. 888888), throwing an expected OSError(22) warning before falling back to 115200 baud.

Step-by-Step Windows Simulator Connection Guide

Step 1: Create the Virtual Serial Port Bridge

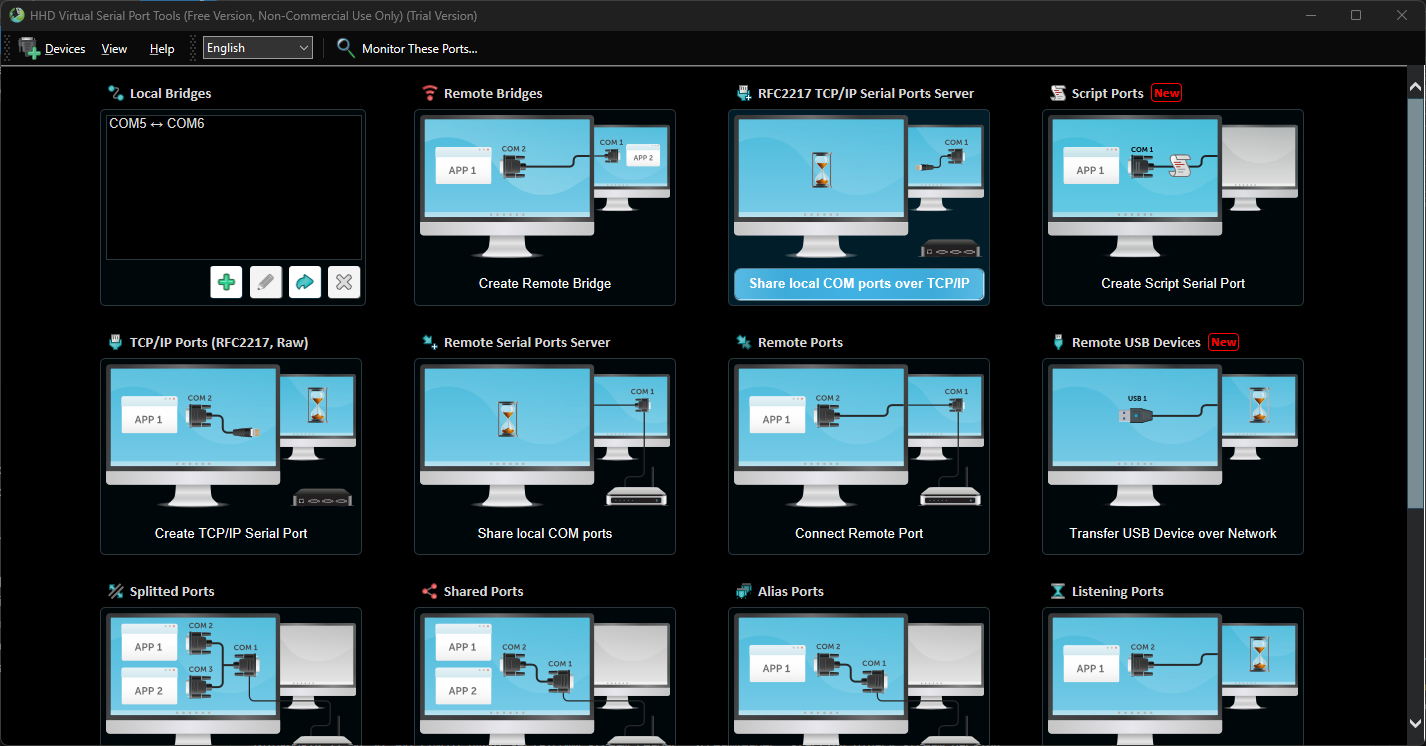

Open HHD Virtual Serial Port Tools. Under the Local Bridges panel on the left, click the green + (Add) button to create a new port pair. Configure it to bridge COM5 ↔ COM6.

Step 2: Configure and Start the Wafer Simulator

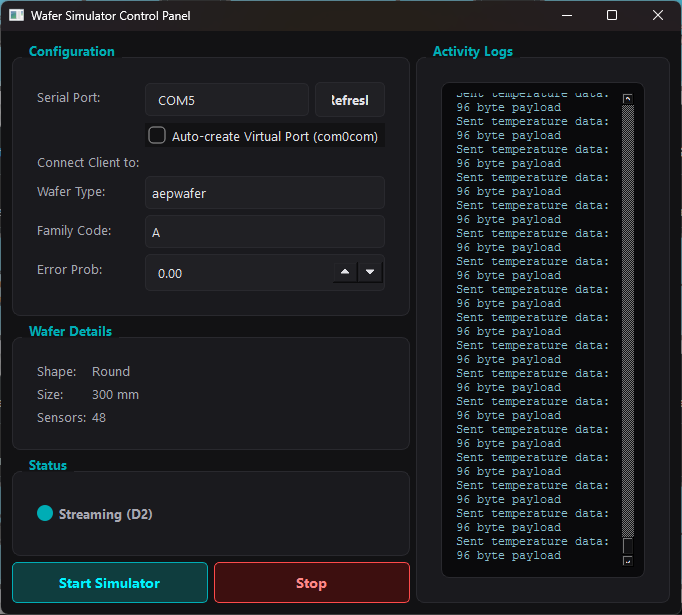

Launch the Wafer Simulator Control Panel (wafer_sim_gui.py):

1. Set the Serial Port to COM5.
2. Uncheck the Auto-create Virtual Port (com0com) checkbox.
3. Choose your desired Wafer Type (e.g., aepwafer) and Family Code (e.g., A).
4. Click Start Simulator. Once the client connects, you will see Streaming (D2) status and active data transfer logs.

Step 3: Run the UI and Connect

Launch the pygui client application. On the left navigation rail, click DETECT WAFER. The application will scan all active COM ports, automatically detect the virtual wafer simulator on COM6, and update the status indicator to Connected (green).
